Belmont Phot-XiiS 505

The Belmont Phot-X IIS 505 intraoral X-ray unit, used to capture diagnostic images of individual teeth.

Intuitive and easy selection
Intuitive and easy selection of tooth type, cone type,
film / digital modes, film speed, kV, mA and patients size.

Customizable LCD display view
LCD display view can be customized for operator
preference. Built-in USB side port enables operators
to import personalized screen saver photographic
images or dental practice / doctor’s name for
practice identification and branding.

A Sum of radiation dose display
Check the radiation dose of
each patient. Reset the sum by
keeping touch the sum number.

B Display of exposure time
Change the exposure time
easily by touching the arrow
and obtain the image you desire.

C Display of radiation dose of each exposure.
Sensitivity setting

Reliable DC X-ray by Belmont
Small 0.4 focal spot value for the sharpest image possible

Radiation dosage
PHOT-XIIs utilizes a Direct Current (DC) generator to minimize radiation absorbed by patients.
In addition, there are 36 programmable exposure time settings between 0.01 to 2.0 seconds to fine tune the precise amount of radiation required to produce an excellent radiographic image.

Specifications & Options

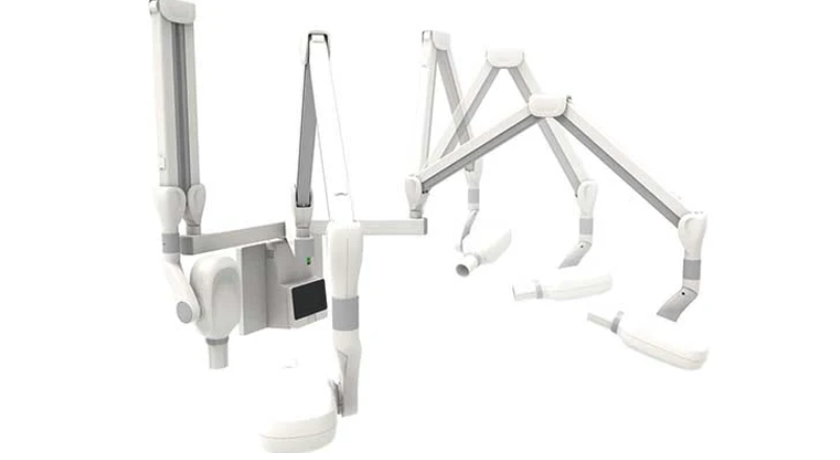

· Horizontal arm length of WK Type is selectable : 300 mm, 500 mm, 650 mm, 800 mm (standard) and 1000 mm
· Ceiling pole length of CK / CKL Type is selectable : 600 ~ 1350 mm
· Long cone (Short cone + Long cone collimator) for paralleling technique
· Rectangular collimator
· Hand exposure switch with coiled cord (Option for WK, RK, FK2 and CK. Standard for FM and FK1.)
