Dentium SLIM LINE

The Dentium Slim Line implant system, designed for narrow ridge cases requiring a reduced-diameter implant.

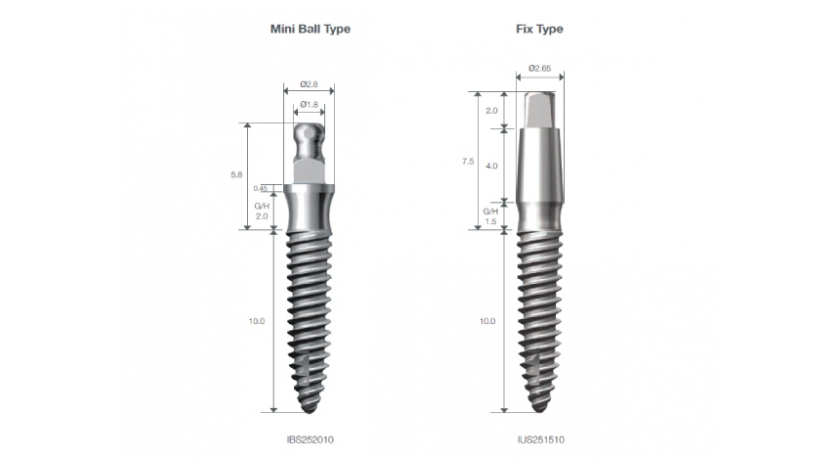

ONE BODY DESIGN-MINI IMPLANT
• Torque can be adjusted using the ridge spreader for hard bone case
• For narrow bone ridge
• Self-tapping function

One Body Design
• S.L.A. surface and torque adjustable ridge spreader enable immediate or early loading
• Mini ball (Ø1.8) & metal socket make denture
production easy
• Wide range of choice for prosthetic options

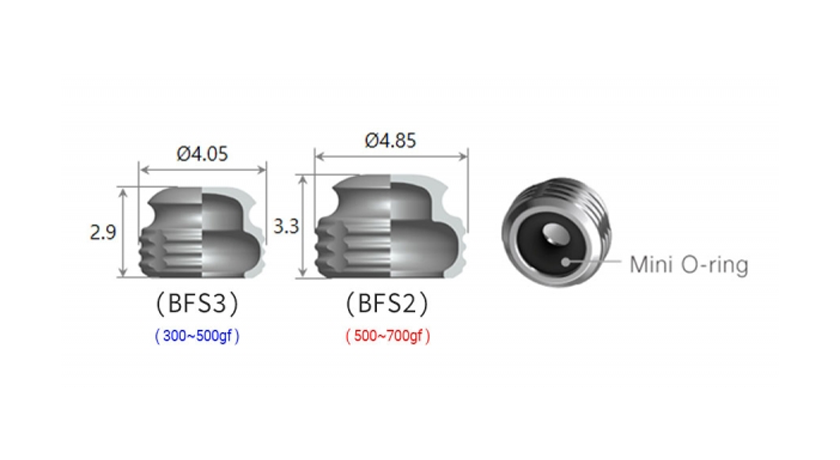

Denture System
• Mini ball size (Ø1.8)
• Mini o-ring type denture socket
• Minimal-size denture socket
• Mini o-ring are replaceable

Angled Abutment
• Slanted implanting is possible with the combination of angled abutment (15°, 25°)
• Cement the final restoration onto the abutment.

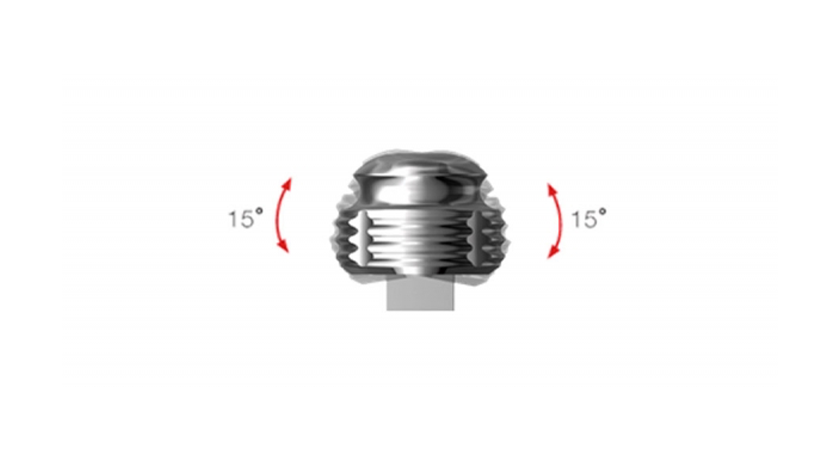

Tilting Angle
• Up to ±15 degrees of tilting angles to accommodate the pathway of the implant.
