Nautilus T Induction Cast Cool Touch

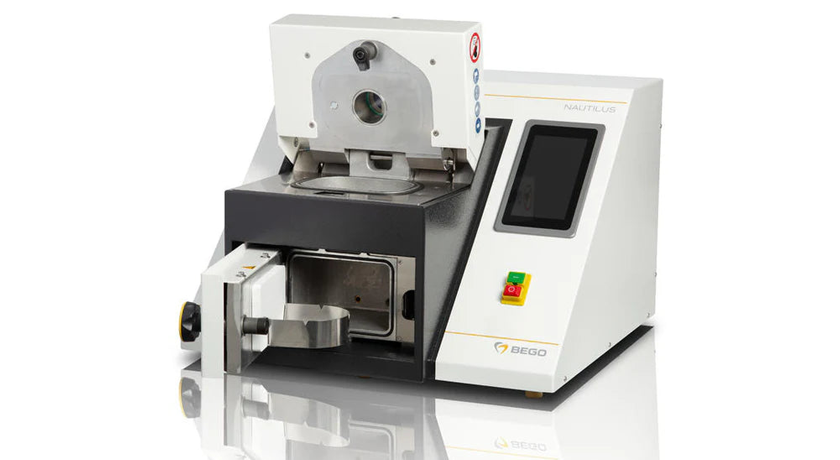

The Nautilus T induction casting unit, used to melt and cast metal alloys with a cool-touch safety design.

BEGO Nautilis T

The compact, benchtop vacuum pressure-casting machine with integrated power cooling, induction heating and camera system.

New: Network connection via LAN or W-LAN enables access to the integrated casting log archives.
New: The connection via the service portal* my.Bego.com enables direct remote diagnosis of the device.
Large 7" touch display iwth intuitive menu navigation for convenient and easy operation.
High-performance induction heating guarantees short melting cycles, minimises oxidation and thus facilitates subsequent finishing.
Large touch display with intuitive menu navigation for convenient and easy operation.
Integrated power cooling provides for over 50 casts in a row, even with high ambient temperatures with moulds made of phosphate-bonded investment materials.
Integrated cooling saves water and helps to protect the environment.
Compact dimensions and design give the Nautilus® T a very small footprint.
Suitable for all commercially available precious-metal and nonprecious alloys (excluding titanium).
Eco mode switches off all unnecessary components in idle mode and reduces operating costs.

Product details
Technical data
Height 420 mm
Height with cover open 520 mm
Width 600 mm
Depth 670 mm
Weight approx. 63 kg
Rated voltage 230 VAC, 50/60 Hz
Power at rated voltage of 230 V 16 A
Compressed air connection (Connection thread 1/4“) at least 5 bars (0,5 [MPa])
Air consumtion approx. 100 l/min
