NSK ENDO-MATE TC2

The NSK Endo-Mate TC2 endodontic motor, providing controlled rotary file movement during root canal preparation.

Large LCD display with 5 programs for different file systems
Supports most major brands of Ni-Ti files
Torque control facility ranging from 0.1 to 4.0 NCM depending on head:gear ratio
Smarter and Safer
Cordless Endodontic Handpiece with Torque Control and Auto Reverse

Technology & Function

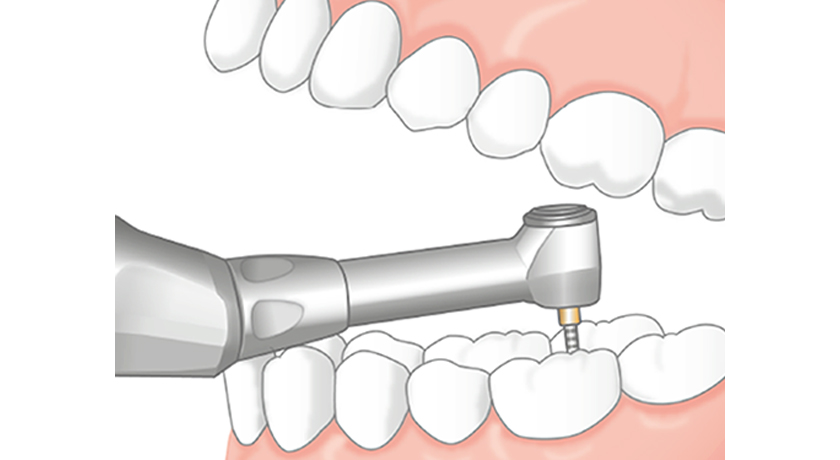

Mini Head & Slim Neck
Slim head and neck assures higher visibility.

Alarm Sound of Two
Two kinds of alarm sound for safer and efficient treatment (For ENDO-MATE TC2).

Program Function

User definable 5 presets – Speed, Torque,Gear Ratio & Auto Reverse mode
Last program settings can be memorized when the power turns on
Ni-Ti Files

Suitable for use with most major brands of Ni-Ti files
Selecting gear ratio attachment applies the entire rotation and torque.

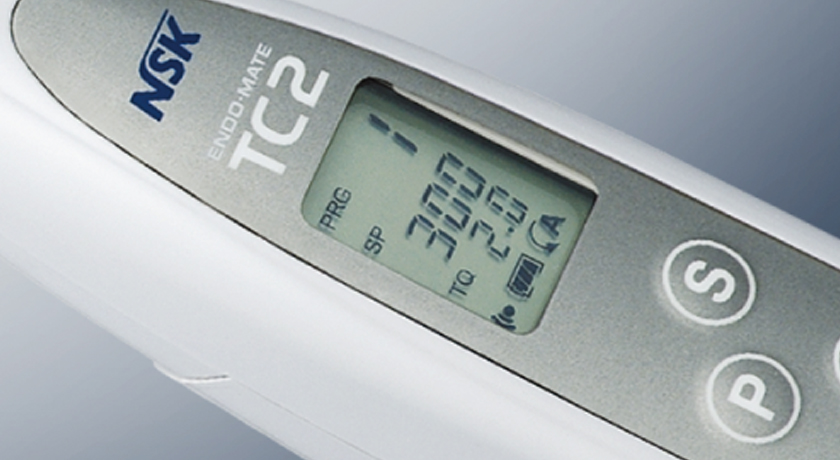

LCD Panel
Large LCD panel and access-friendly key

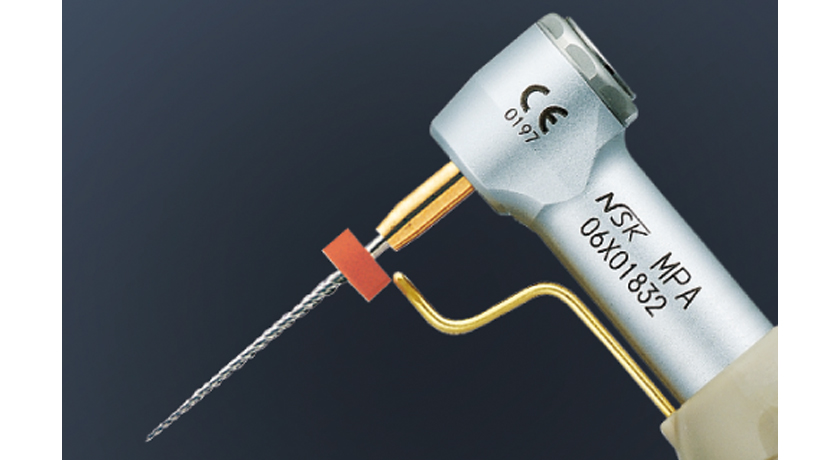

MPA / MPAS
MPA and MPAS heads are equipped with built in probe ring which enable to use your Apex locator with the ENDO-MATE TC2 system. By combining an Apex Locator with NSK ENDO-MATE TC2, clinicians will be able to perform more accurate root canal preparations. All contra angle heads are autoclavable up to 135°C.

Fast Charger
90min. quick charge with non-contact type charger

Specifications

Speed range: 2,000-9,000 min-1
Charge: 1.5 h (depending on workload)
Continuous use: 1.2 h (depending on workload)
