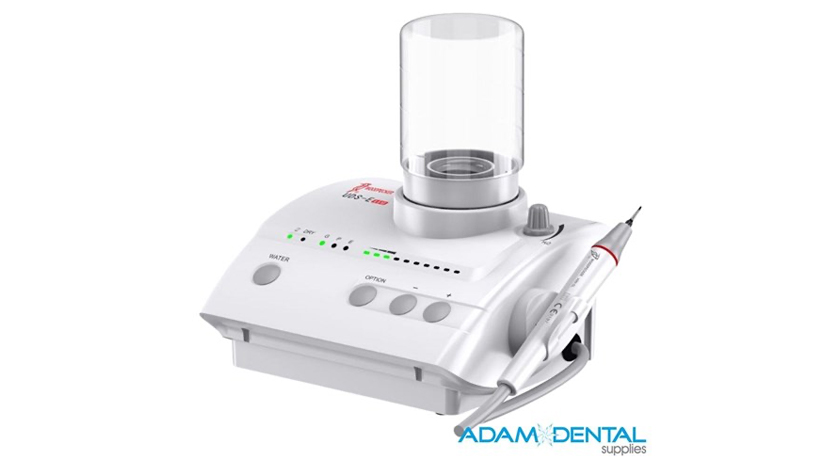

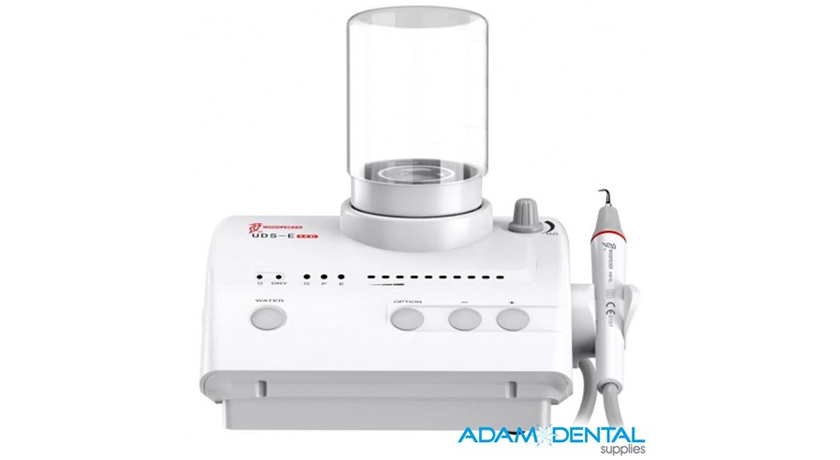

UDS-E LED Ultrasonic Scaler

The UDS-E LED ultrasonic scaler, combining calculus removal with integrated illumination.

Features:

UDS-E LED scaler has scaling, perio, endo and auto-water supply functions
With auto-water supply function, easier operation.
The inner water pipe is made from antiseptic material, clinical fluids, such as Hydrogen peroxide, chlorhexidine and sodium Hypochlorite, etc, can be used perfectly under the mode of auto-water supply system so that the performance of perio and endo is improved dramatically.

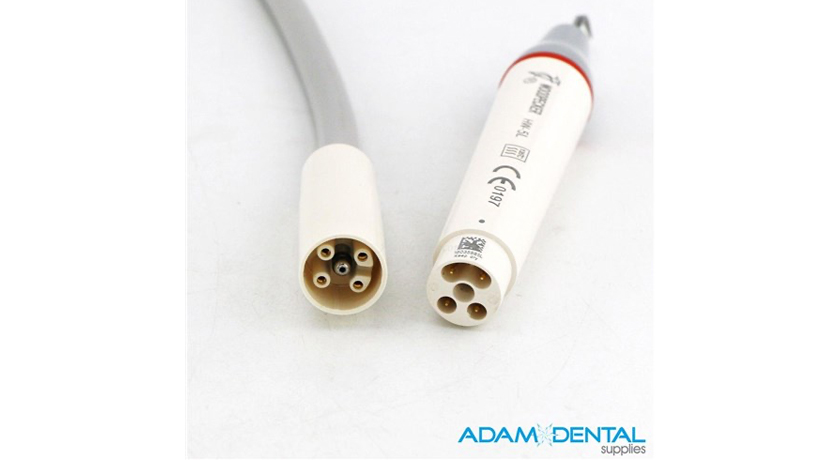

The handpiece is detachable and can be autoclaved to the temperature of 135℃ and the pressure of 0.22MPa.
Automatic frequency tracking ensures that the machine always works on the best frequency and performs more steadily.
Controlled by PC, easy operation and more efficient for scaling.
The scaler is composed of electro circuit, waterway and ultrasonic transducer.
UDS-E LED is used for the dental calculus elimination and root canal treatment.
Optical handpiece, more convenient for clinical operation.
Specifications:

Power source input: 220 - 240V, 50Hz/60Hz, 150mA
Main unit input: 24V - 1.3A
Output primary tip vibration excursion: ≤100um
Output half-excursion force: ＜2N
Output tip vibration frequency: 28kHz ± 3kHz
Output power: 3W to 20W
Main unit fuse: T 1.6AL 250V
Power source fuse: T0.5AL 250V
Water pressure: 0.1bar to 5bar (0.01MPa to 0.5MPa)
Weight of main unit: 1.17kg
Weight of power source: 1.2kg
Dimension: 234mm x 193mm x 109mm
Operating mode: Continuous operation
Type of protection against electric shock: Class II
Degree of protection against electric shock: Type BF applied part
Applied part of the equipment: handpiece and tip
Degree of protection against harmful ingress of water: Ordinary equipment (IPX0), Protection degree against water (used on the foot switch): IPX1
